Cathédrale anglicane St. John the Baptist Anglican Cathedral
St. John's, NL.

Description
[Français / English]
Composition sonore
Stop List
Références
References
Retour
Return

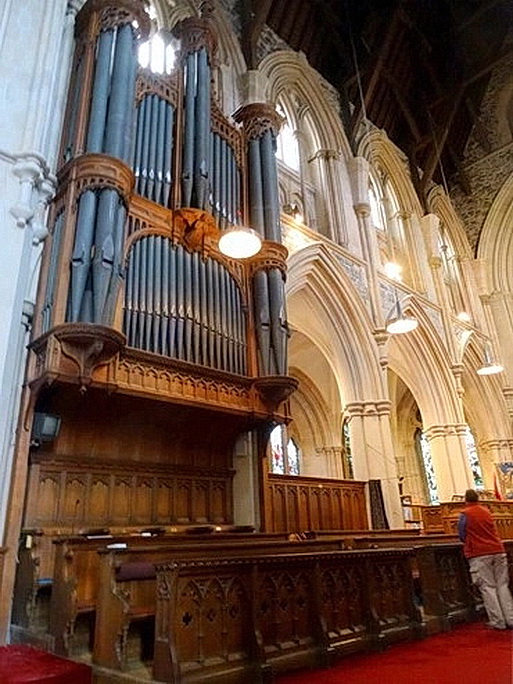

[St. John the Baptist Anglican Cathedral, St. John's, NL.]

Ingram, Hope-Jones 1904 / Norman & Beard 1915 /
Casavant, Opus 1178, 1927

  • 4 claviers et pédalier / 4 manuals and pedal
  • 52 jeux / stops, 52 rangs / ranks, 3 564 tuyaux / pipes
  • Traction électrique des claviers / Electric key action
  • Traction électropneumatique des jeux / Electro-pneumatic stop action

[cliquer sur l'image ou ici pour obtenir une version agrandie]
[click on the image or here to obtain a larger picture]


La cathédrale

L'orgue

[cliquer sur l'image ou ici pour obtenir une version agrandie]


The Cathedral

The Organ

[click on the image or here to obtain a larger picture]


Composition sonore / Stop List

I. Great

III. Swell
(expressif / enclosed)

Doule Open Diapason16' Lieblich Gedact16'
1Diapason I8' Diapason I8'
Diapason II8' Diapason II8'
1Doppel Flute8' 1Clarabella8'
Hohl Flute8' 1Bourdon8'
1Gemshown8' 1Viola di Gamba8'
1Octave4' 1,2Voix céleste8'
1Flûte harmonique4' Principal4'
1Twelfth2 2/3' 1Traverse Flute4'
1Fifteenth2' 1Piccolo2'
1Mixture 2'IV 1Cornet 8'IV
Tromba8' 1Double Trumpet16'
1Clarion4' 1Cornopean8'


1Oboe8'


1Vox humana8'


Tremulant


II. Choir
(expressif / enclosed)

IV. Solo
(expressif / enclosed)

1Dulciana16' 1Stentorphone8'
1Violin Diapason8' 1Grosse Flûte8'
1Chimey Flute8' 1iole d'orchestre8'
1Spindle Flute4' 1Viole céleste8'
1Nazard2 2/3' 1Harmonic Flute4'
1Flageolet2' 1Tuba mirabilis8'
1Tierce1 3/5' Tremulant
1Clarinet8'

Tremulant



Pedal

Double Open Diapason (RES)16'
Tibia Profunda16'
Double Open Diapason (GT)16'
1Bourdon16'
Dulciana (CH)16'
Lieblich Gedact (SW)16'
Tibia Plena (ext)8'
1Stopped Flute (ext)8'
Tromba16'
Trumpet8'
